Configure and use Ada Glass for Intercom

Overview

Ada Glass for Intercom helps you create a seamless handoff from your chatbot to a live agent in Intercom, all from within Ada. To use Ada Glass for Intercom, you must have an Intercom account.

Configure Your Intercom Instance

Prepare Intercom for the Ada Glass integration by completing the following in Intercom:

  1. Create a Private App specifically for Ada.

  2. Retrieve an Access Token for Ada to use to connect chatters to your Intercom agents.

  3. Grant appropriate permissions.

  4. Add Webhooks.

  5. Create Ada conversation custom attributes.

  6. Create Intercom Teams.

  7. Create Intercom Tags.

Create a Private App in Intercom

Prerequisite:

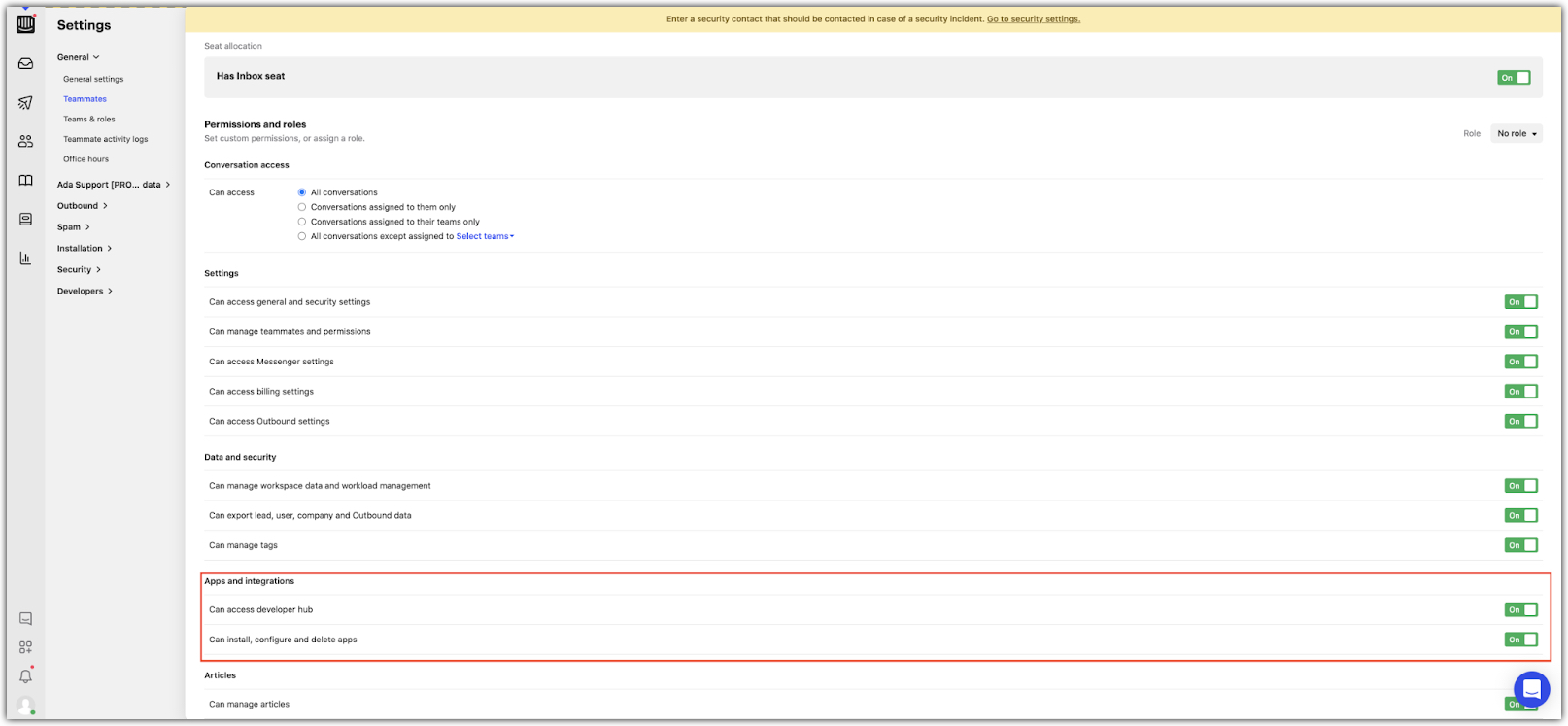

To set up a private app in Intercom, you need to have access to the Intercom developer hub. To grant access to the developer hub, navigate to Settings > General > Teammates (Select the user here) > Permissions and Roles → Apps and Integrations. Then turn on the following permissions for the desired user:

  • Can access developer hub

  • Can install, configure and delete apps


Once this is done, follow these steps to create a new app:

  1. Navigate to Settings > Developers > Developer Hub. This will open up the Developer Hub page.

  2. Click New App.

  3. Create a new private app, and call it “Ada Integration.”

Retrieve an Access Token

To retrieve your Access Token, go to the Developer Hub, Select the Ada Integration app, and click Configure > Authentication > Access Token. Copy the Access Token and save it in a safe place.

  1. Navigate to Settings > Developers > Developer Hub. This will open up the Developer Hub page.

  2. Select the Ada Integration app.

  3. Click Configure > Authentication > Access Token.

  4. Copy the Access Token and save it in a safe place.

Grant permissions

  1. Navigate to Settings > Developers > Developer Hub. This will open up the Developer Hub page.

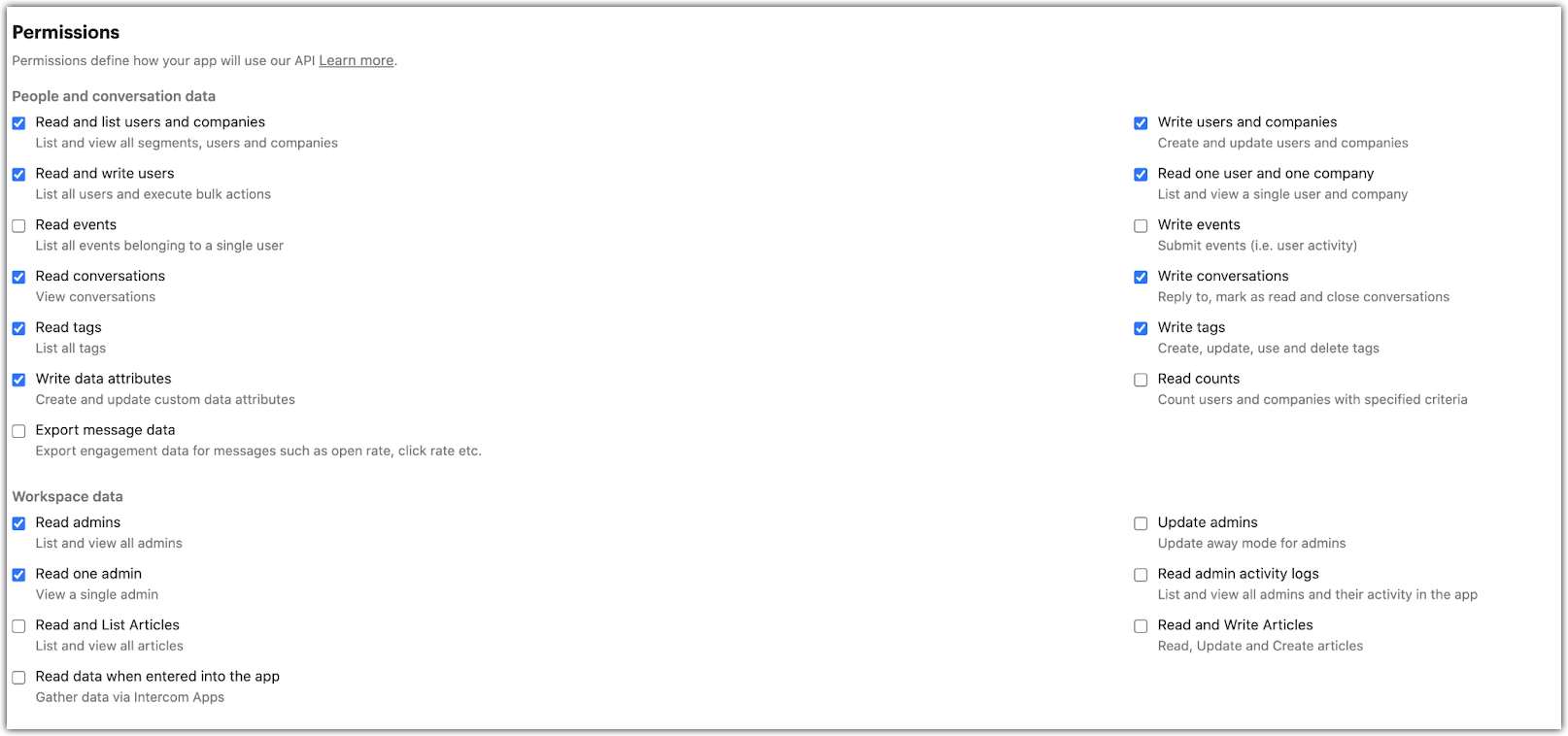

  2. Under People and conversation data and Workspace data, grant the appropriate Permissions—select the following (reference the screenshot below).


Add Webhooks

Important

Configure only one app with the Ada webhook URL. Having multiple apps configured results in duplicated agent messages and Intercom events. This is true even if the additional apps aren't used.

  1. Navigate to Settings > Developers > Developer Hub. This will open up the Developer Hub page.

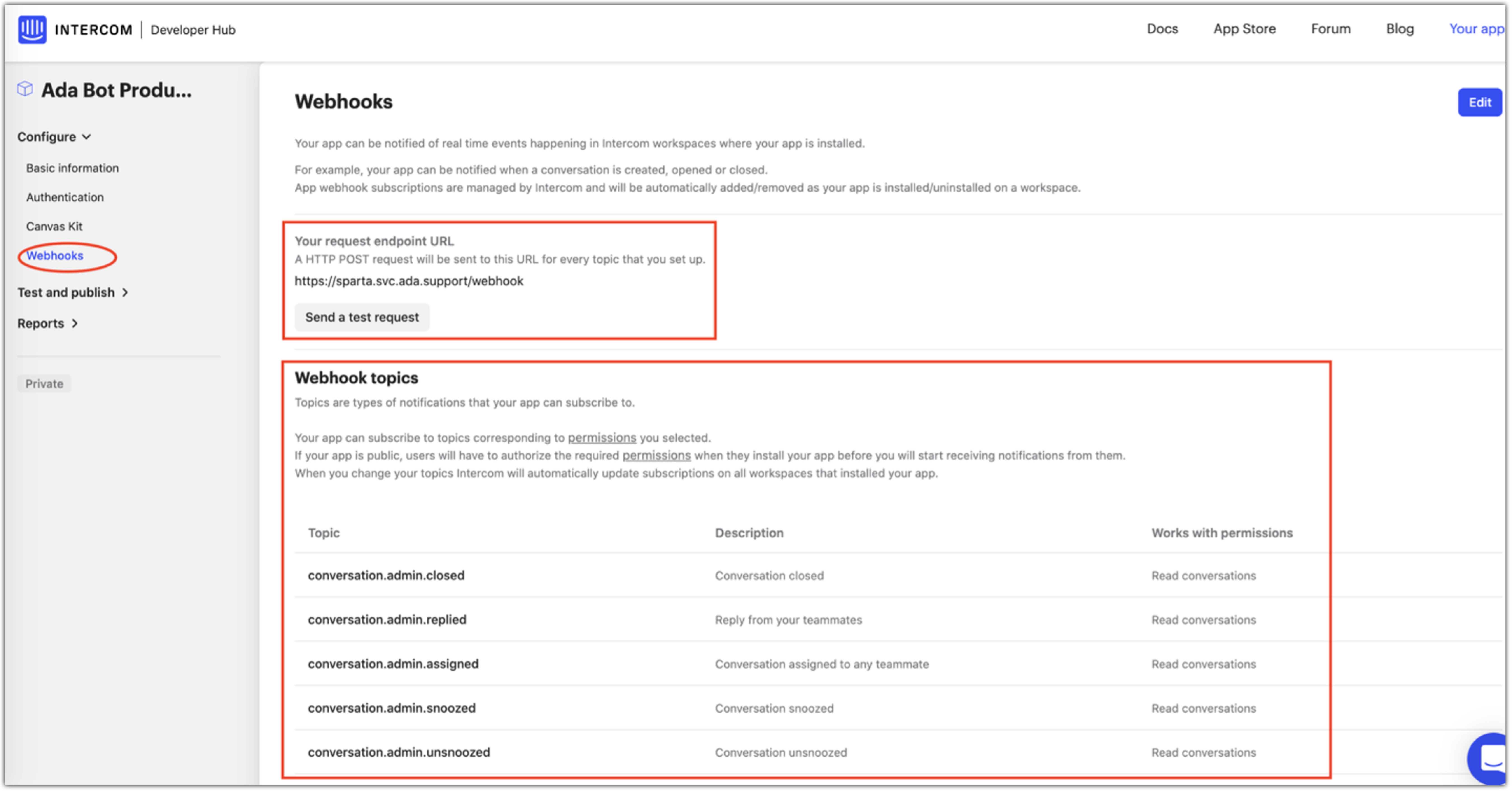

  2. Go to Configure > Webhooks to view your Intercom Webhooks.

  3. Click Edit and enter these details:

    • Your Request Endpoint URL (Ada Webhook URL): https://sparta.svc.ada.support/webhook

    • Webhook topics:

      • conversation.admin.closed

      • conversation.admin.replied

      • conversation.admin.assigned

      • conversation.admin.snoozed

      • conversation.admin.unsnoozed

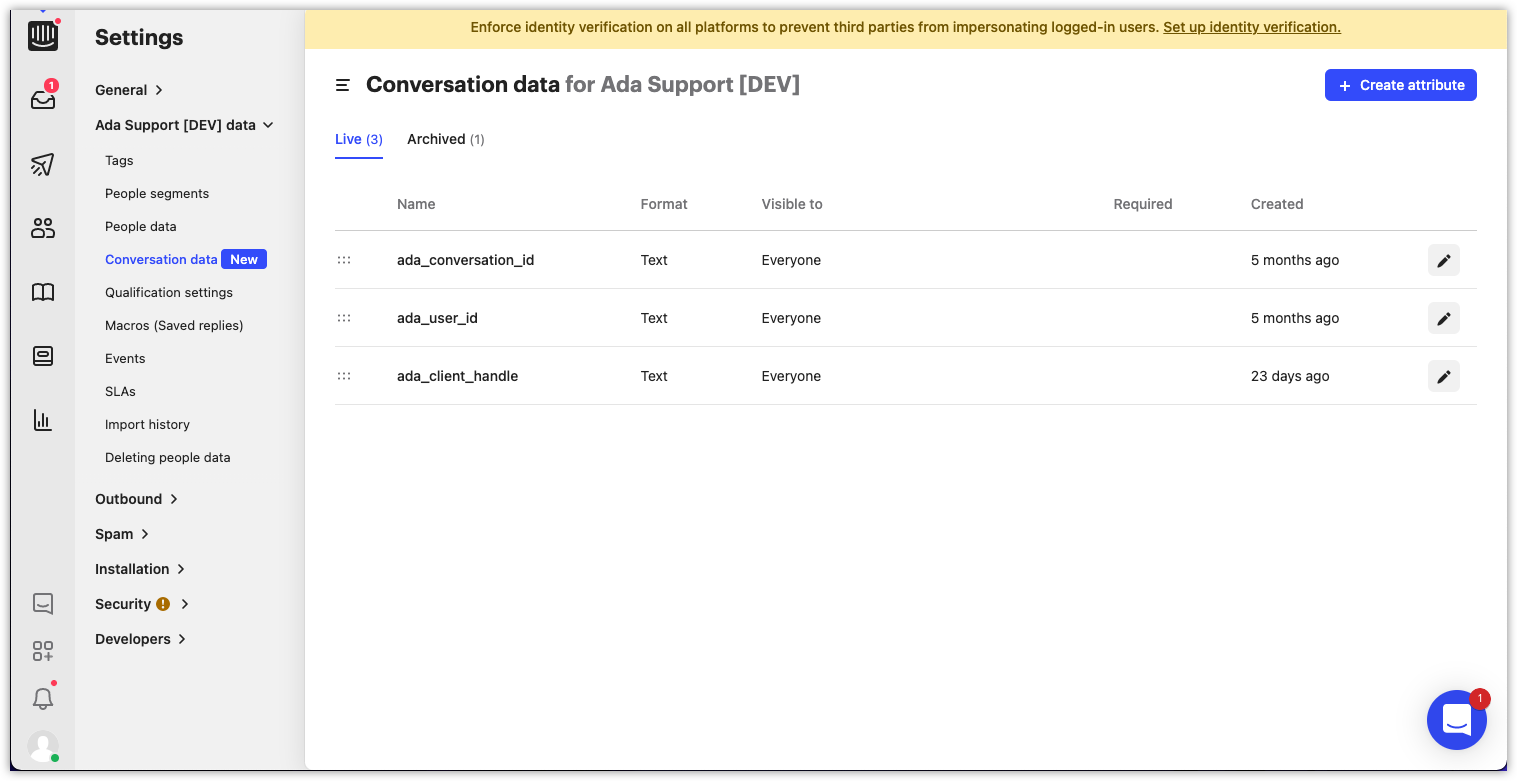

The Ada Conversation Attribute

For an Intercom handoff, Ada uses custom attributes as identifiers for the various elements of a conversation. Examples of these elements include the conversation ID, the chatter ID, and the client handle. But don't worry! You only need to add a single universal attribute (ada_custom_attributes) that encompasses all these elements automatically.

Use the following steps to create the universal attribute:

  1. In Intercom, go to IntercomAgent Workspace > Settings > Instance Name > Data > Conversation data.

  2. Click the Create Attribute button to add a new attribute.

  3. In the Name field, enter ada_custom_attributes.

  4. Click the Format drop-down menu, then select Text.

  5. Click Save.


Create Intercom Teams

If you would like to route a conversation to a specific department, you will be required to create a team.

  1. Navigate to the Settings page.

  2. Go to General > Teams & roles.

  3. Click New Team and fill in the empty fields.


Create Tags in Intercom

  1. Navigate to the Settings page.

  2. Under the *Your Workspace Name* data tab, click on the Tags item.

  3. Create your first tag by clicking the New tag button.

    Note

    If you have pre-existing tags created, you may find the New tag button on the top right corner of the Tags screen.

  4. After you name your new tag, click the checkmark beside the input field or press Enter to save it.

The tag is now ready to use in Intercom and the Intercom block in Ada.

Configure Ada Glass for Intercom

To configure the Ada Glass for Intercom integration in Ada:

  1. Navigate to the Settings page.

  2. Click Integrations, then scroll down to Handoff Integrations.

  3. Next to Intercom Agent Chat, click Configure.

  4. Input the Access Token from your Intercom instance in the dialog that appears.


How to Use the Ada Glass for Intercom Live Agent Block

  1. Create a new Answer to handle handoffs to Intercom live agents.

  2. Click and drag the Intercom block from the block bar into the Answer.

  3. Add any applicable tags, such as "Ada." (These tags will be mapped to the conversation in Intercom.)

  4. Select the appropriate department from the Department dropdown.

  5. Click the Save button at the bottom of the screen.

  6. Train the Answer so that it is surfaced when chatters require a live agent.

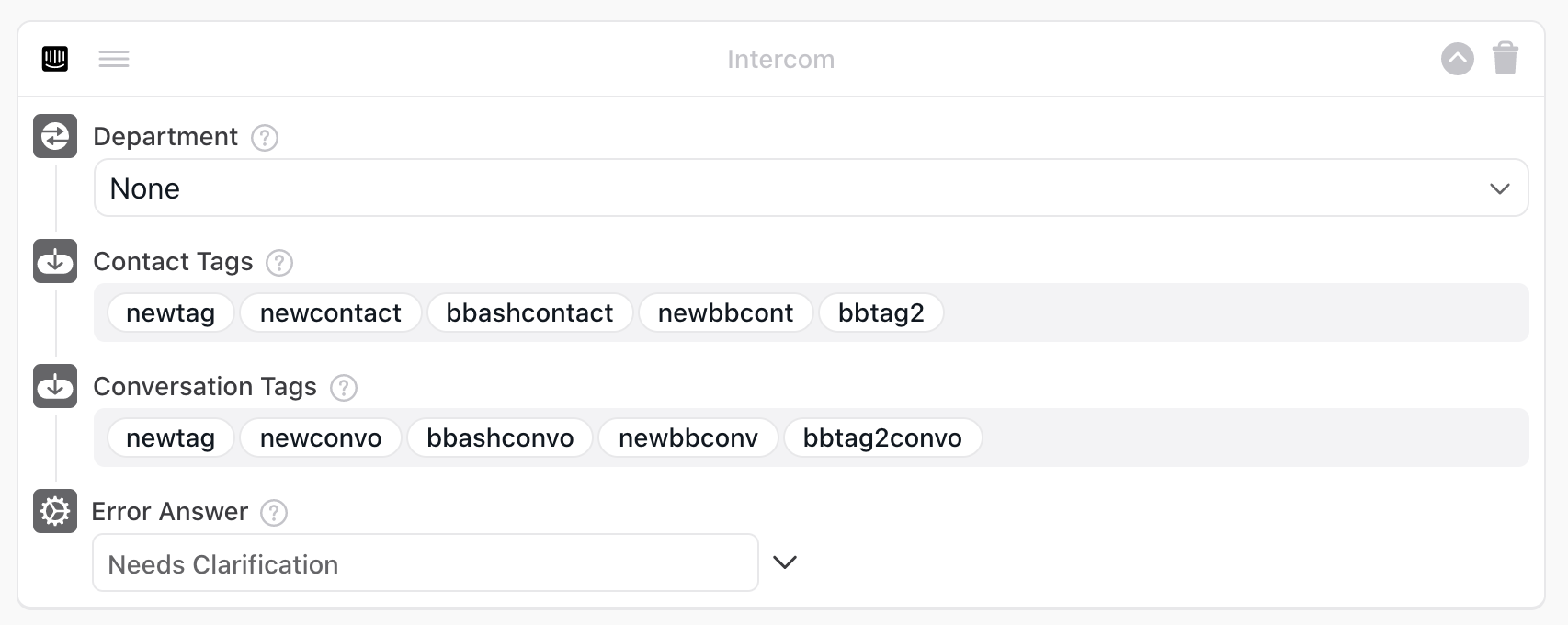

Configuring Tags in the Intercom Block

The Intercom block supports the ability to add tags that will be attributed to Contacts (represented by the “People” column in Intercom’s tags interface) and Conversations. These are separated by two fields: Contact Tags and Conversation Tags.

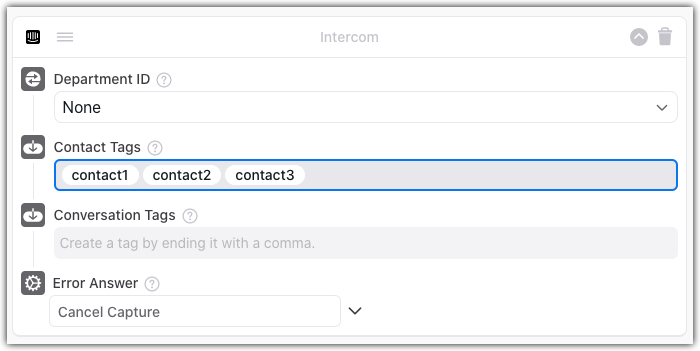

In the above image, the Contact Tags field has been filled with three tags that will be attributed to the contact: contact1, contact2, and contact3. Adding a tag in this field will reference an existing tag created in Intercom with the same name or, if a tag with the same name does not exist in Intercom, a new tag will be created in Intercom and automatically attributed to the Contact.

To add a new tag, type in the name of the tag, then add a comma (“,”).

The Conversation Tags field functions identically to the Contact Tags field, the only difference being that the tags will be attributed to the conversation created during the handoff. A tag can be used in both Contact Tags and Conversation Tags, and will attribute both the contact and conversation with the same tag. As a rule of thumb, while conversations will be transferred from Ada to Intercom immediately, tags will be delayed 30-60 seconds.

Off Hours

The Intercom API does not support automatic off-hours routing, we recommend using the Scheduled block to ensure that chatters are routed effectively. If chatters try to connect to agents before or after business hours, the Scheduled block will redirect them to a process that will handle an off-hours requests. Talk to your ACX Consultant for more info.

Chatter Experience

Once the chatter has confirmed they would like to speak with an agent, they will receive a message informing them to wait while they are connected a support agent.

When the chat is assigned to an agent, the agent's name is provided to the chatter to identify who they are chatting with. The chatter will continue the conversation with the live agent in the same chat window that they were corresponding with the bot in, resulting in a seamless experience for the chatter.

Intercom Live Agent Experience

If you would like to have your chatter identified in Intercom, you can collect chatter's personal information and save them as variables. Below are the variable that are supported:

  • first_name/firstname

  • last_name/lastname

  • email

  • phone_number/phonenumber/phone

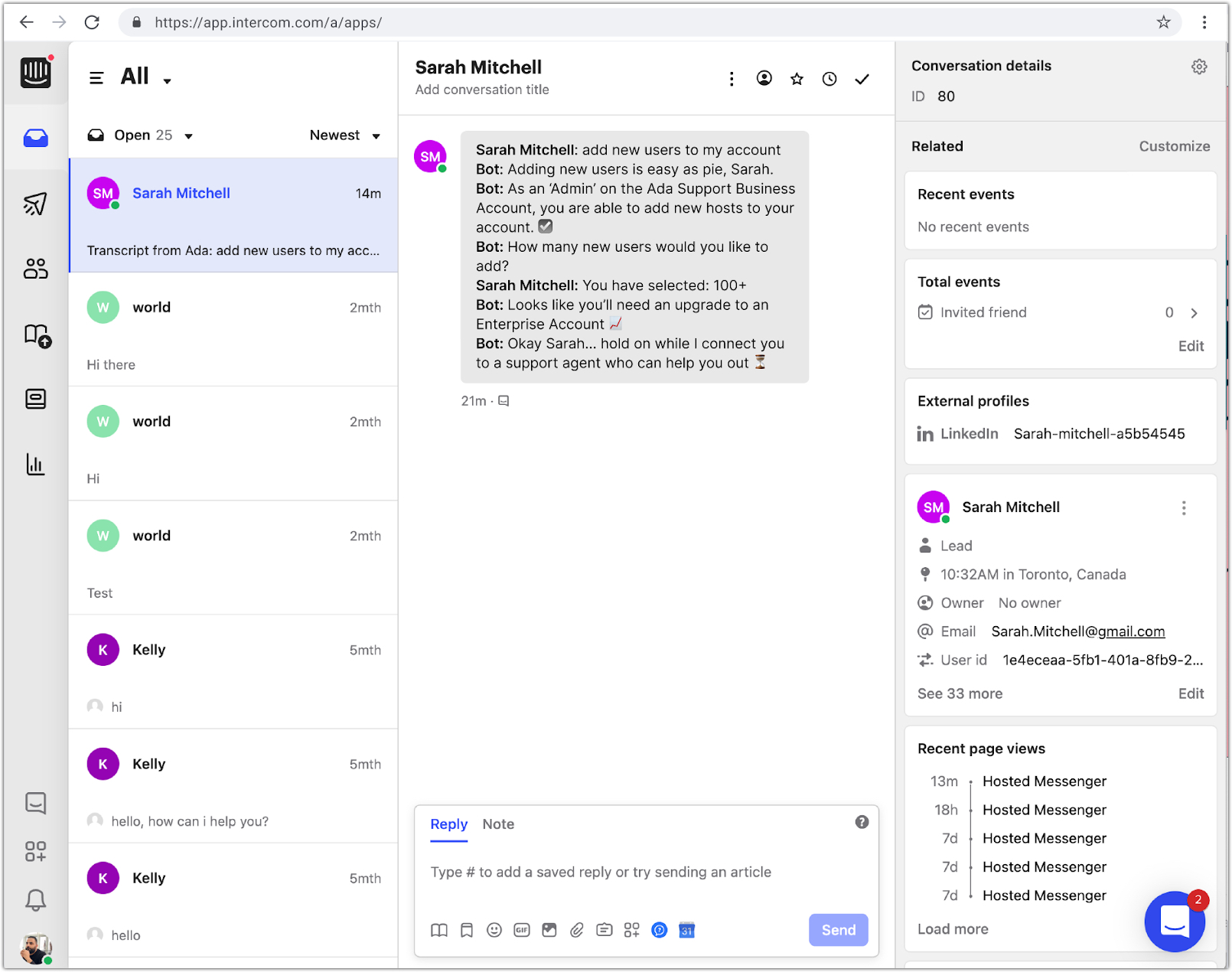

If the bot has captured the specific information from the chatter, such as the info listed above, it will be mapped to the chat, along with tags. Agents will also see the conversation the chatter had with the bot leading up to the handoff.


Tags In Action

You can find the contact tags displayed in the bot transcript forwarded to the chat interface as well as on the lead tags section on the right pane

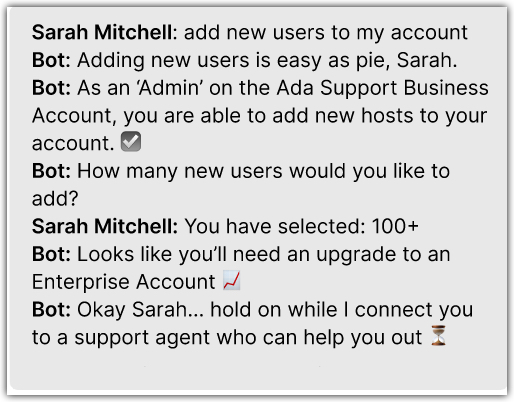

Transcripts

The full transcript of the chat is visible in the Intercom transcripts, so an agent can have the entire context of the conversation to help solve customer issues.


Note

File transfers can only be done between the agent and the chatter at this time.

Have any questions? Contact your Ada team—or email us at help@ada.support.
