Getting started

Ada allows external developers to create, register, and publish integrations that enhance the platform’s capabilities. This guide walks you through the complete integration process, from development to deployment.

This guide uses a Knowledge API integration as an example.

Implementation example

To see a working code sample implementation for creating a knowledge integration, visit our public repository for complete details: ada-integrations-demo.

Before you begin

Make sure you have the following:

• Access to an Ada development AI Agent: Use a sandbox AI Agent specifically for testing and developing your integration, not a live AI Agent. This AI Agent should be dedicated exclusively to managing integrations.

• A basic understanding of OAuth 2.0 flows – Familiarity with OAuth authentication is essential for integrating securely.

  • See the OAuth overview for more details on how Ada uses OAuth for integrations.

Step 1: Set up your integration server

The first step is to build an integration server that Ada can communicate with when AI agent managers install your integration. Your integration server will be responsible for several tasks:

• Handle OAuth callbacks from Ada.

  • Your server must provide an endpoint to handle OAuth callbacks. This is the URL that Ada’s dashboard will call after the AI agent manager authorizes your integration.
  • If you’re familiar with OAuth 2.0 flows, this URL typically looks like:

    http://<your-domain>/oauth/callback
  • The endpoint will:
    • Receive an authorization code via the code query parameter.
    • Exchange this code for access and refresh tokens within 5 minutes.
    • Store installation details, including the installation secret.
  • In the next step, when registering your integration, you’ll specify this URL in the oauth_callback_url field.

• Manage access and refresh tokens securely.

  • Store the access and refresh tokens securely.
  • Always overwrite the refresh token with the latest value. The Ada authorization server issues a new refresh token each time one is used as a security best practice.

• Complete the integration installation flow.

  • Implement any custom logic required for your app (for example, fetching articles via the Ada Knowledge API).
  • Update the integration status to complete in Ada by calling the Integrations API.

• Handle success and error states.

  • Redirect users to the appropriate success or error page.

• Implement token refresh logic.

  • Ensure your server can refresh tokens when needed.

• Ensure HTTPS accessibility.

  • Your integration server must be accessible through HTTPS for security and compliance.

Step 2: Register your integration with Ada

Before your integration can interact with Ada, you need to register it with your development AI Agent. This process involves generating an API token, sending a registration request, and securely storing the credentials. Once registered, your integration is owned by your development AI Agent, meaning any future modifications must be made using the same AI Agent handle and an API token from its dashboard.

1. Generate an Ada API key.

   To authenticate requests, obtain an Ada API key from your integration development AI Agent.

2. Send a request to register your integration.

   Once you have an API token, use it to send a request to Ada’s platform to register your integration. This request establishes your integration within the system, enabling it to interact with Ada’s APIs. Ensure that all required fields are correctly populated to avoid registration errors.

   Request fields

   This callout goes over some of the key request fields that you must provide when registering your integration.

   scopes

   These are the permissions that will be granted to your integration’s access tokens, and dictate which API endpoints your integration will be able to use.

   • Current valid scopes are:

     • articles:read
     • articles:write
     • article_tags:read
     • article_tags:write
     • knowledge_sources:read
     • knowledge_sources:write
     • platform_integration_installations:read
     • platform_integration_installations:write

   • platform_integration_installations:read and platform_integration_installations:write permissions are always granted to your integration, even if you don’t explicitly include them in the scopes field, since you will always need them.

   • More scopes will become available as more APIs become available.

   configuration_fields

   Configuration fields come with a lot of context. Please make sure to read through the following at least once before attempting to register your integration with Ada:

   • This field describes the form that we render to collect config info from the AI manager in the dashboard.
   • The schema must be defined according to the json-schema standard: https://json-schema.org/docs.
   • The schema supports a variety of form fields, including:
     • string (text)
     • boolean
     • number
     • arrays of fields
     • string enum (select field)
     • array string enum (multi-select field)
   • Ada does not support the following json-schema fields:
     • text area
     • file upload

   identifier_field_path

   • Friendly name for admins to find the installation in the Connections list in the Ada dashboard.
   • The AI manager provides the value of this friendly name; identifier_field_path describes which part of the configuration info should be used as the name.
   • The format of this field should be a jmespath.
   • It should refer to a required, string field within the properties described in configuration_fields.

   tags

   • The tags assigned to an integration dictate which parts of the dashboard the integration appears in.
   • Currently knowledge is the only supported tag.

   Request example

   Shell

   $
       POST https://{bot-handle}.ada.support/api/v2/platform-integrations
   $
       Authorization: Bearer <your-api-token>
   $
   $
           {
   >
           "name": "Connect to Cool Shop Knowledge Hub",
   >
           "description": "Connect to Cool Shop Knowledge Hub to sync articles to your knowledge base",
   >
           "author": "Ada",
   >
           "contact": "help@ada.support",
   >
           "uninstallation_url": "<https://cool-shop.example.com/uninstall>",
   >
           "oauth_callback_url": "<https://cool-shop.example.com/oauth/callback>",
   >
           "tags": [
   >
               "knowledge"
   >
           ],
   >
           "error_codes": {
   >
               "error_403": "Unauthorized",
   >
               "error_404": "Not Found"
   >
           },
   >
           "scopes": [
   >
               "articles:read",
   >
               "knowledge_sources:write"
   >
           ],
   >
           "configuration_fields": {
   >
               "title": "Connect to Cool Shop Knowledge Hub",
   >
               "type": "object",
   >
               "description": "",
   >
               "required": [
   >
               "credentials"
   >
               ],
   >
               "properties": {
   >
               "credentials": {
   >
                   "type": "object",
   >
                   "title": "Cool Shop Knowledge Hub credentials",
   >
                   "description": "The following information is found in your Cool Shop admin account",
   >
                   "properties": {
   >
                   "knowledgeHubUrl": {
   >
                       "type": "string",
   >
                       "title": "Help center URL",
   >
                       "description": ""
   >
                   },
   >
                   "consumerKey": {
   >
                       "type": "string",
   >
                       "title": "API key",
   >
                       "description": ""
   >
                   },
   >
                   "consumerSecret": {
   >
                       "type": "string",
   >
                       "title": "API secret",
   >
                       "description": "",
   >
                       "format": "password"
   >
                   }
   >
                   },
   >
                   "required": [
   >
                   "helpCenterUrl",
   >
                   "consumerKey",
   >
                   "consumerSecret"
   >
                   ]
   >
               }
   >
               }
   >
           },
   >
           "identifier_field_path": "credentials.knowledgeHubUrl",
   >
           "call_to_action": "Connect to Cool Shop Knowledge Hub"
   >
           }

3. Store the integration credentials.

   After successfully registering your integration, you will receive a response containing essential credentials, including the id and client_secret. These values uniquely identify your integration and are required for authentication and API requests. Store these keys securely to prevent unauthorized access. You will need them for future authentication requests to securely interact with Ada’s APIs.

4. Understand ownership and future requests.

   • Your integration is now owned by your development AI Agent.
   • Any subsequent requests to view or update the integration must include the same AI Agent handle and an API token generated using its dashboard.
   • This token does not have to be the exact same one used for the initial registration request.

Step 3: Implement the OAuth and token refresh flow

This section guides you through the essential steps of building an OAuth flow, including managing authorization codes and ensuring tokens are refreshed securely to prevent authentication failures.

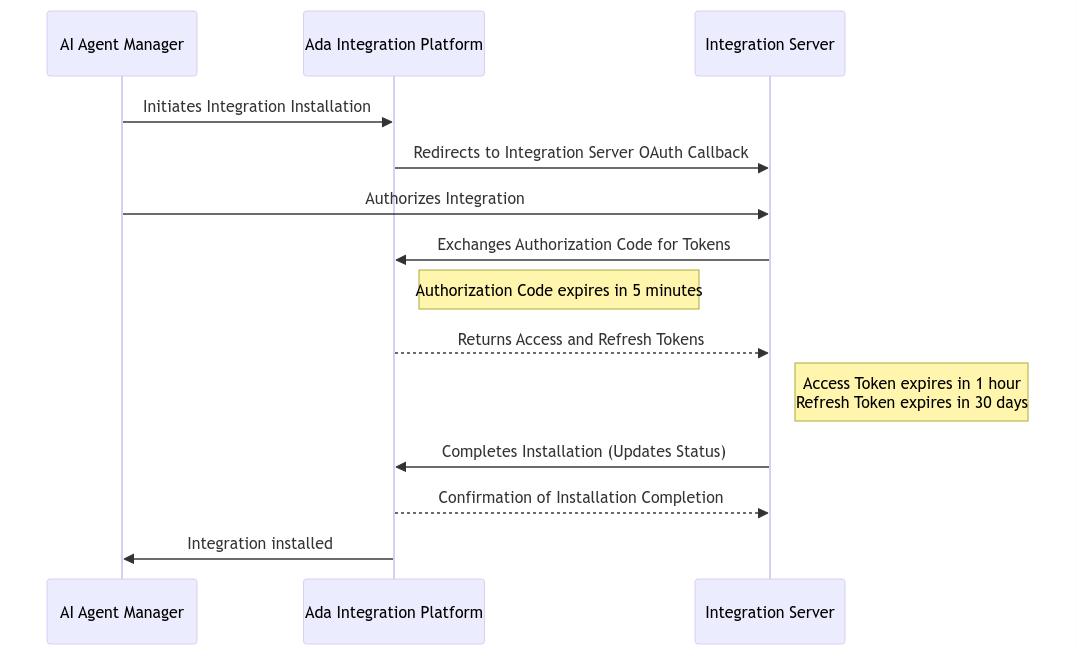

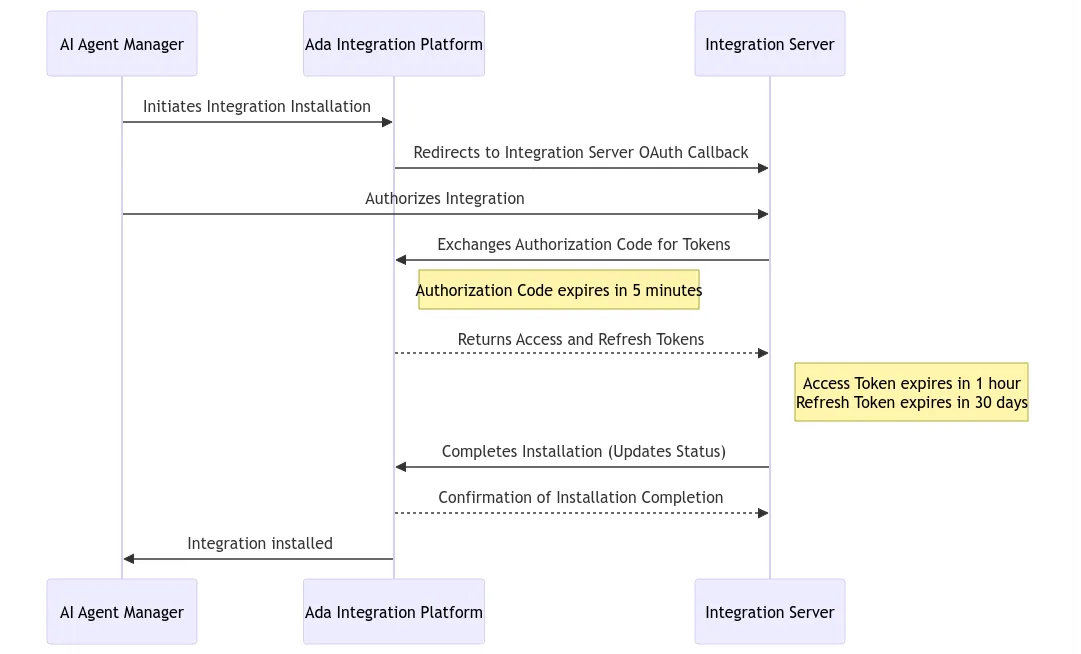

OAuth overview

Creating a secure and reliable OAuth flow ensures that integrations can authenticate and maintain access to Ada’s resources. This involves setting up an OAuth callback endpoint to handle authorization responses and implementing token refresh logic to maintain user access.

Here are the steps involved in creating an OAuth flow:

• Integration installation initiated.

  The AI Agent Manager (User) starts the installation process on Ada’s Platform, indicating they want to add a new integration.

• Redirect to Integration Server.

  Ada’s Platform recognizes this request and redirects the user to the Integration Server’s OAuth callback. This step prepares the Integration Server to handle the user authorization flow.

• Authorization by user.

  The AI Agent Manager provides authorization details (e.g., credentials or consent) on the Integration Server’s interface, permitting the integration to access Ada’s resources as needed.

• Exchange Authorization Code for Tokens.

  • Tokens issued.

    In response, Ada issues:

    • Access Token (valid for 1 hour)—used for authentication in API requests.
    • Refresh Token (valid for 30 days)—used to obtain a new access token when it expires.

    These tokens allow the Integration Server to securely communicate with Ada’s APIs.

  After receiving the user authorization, the Integration Server sends the obtained Authorization Code back to Ada in order to request valid tokens (Access Token, Refresh Token).

  The Authorization Code expires in 5 minutes, requiring timely exchange.

• Completion of installation.

  With valid tokens in hand, the Integration Server notifies Ada that the integration setup is complete—this involves updating the integration status and finalizing configuration steps by calling Ada’s platform APIs as needed.

About OAuth endpoints

There are two OAuth endpoints for token exchange and installation details, respectively. The token exchange endpoint can be used for retrieving the initial set of tokens as well as for requesting a new refresh token. Use the /self endpoint to list the details of an installed integration for use in subsequent calls to the Integrations API.

{
  "method": "POST",
  "url": "https://{bot-handle}.ada.support/api/platform_integrations/oauth/token",
  "headers": {
    "Content-Type": "application/x-www-form-urlencoded"
  },
  "body": {
    "client_id": "INTEGRATION_ID",
    "client_secret": "INTEGRATION_SECRET",
    "code": "<code>",
    "grant_type": "authorization_code"
  }
}

{
  "method": "POST",
  "url": "https://{bot-handle}.ada.support/api/platform_integrations/oauth/token",
  "headers": {
    "Content-Type": "application/x-www-form-urlencoded"
  },
  "body": {
    "client_id": "INTEGRATION_ID",
    "client_secret": "INTEGRATION_SECRET",
    "refresh_token": "<refresh_token>",
    "grant_type": "refresh_token"
  }
}

{
  "method": "GET",
  "url": "https://{bot-handle}.ada.support/api/platform_integrations/oauth/self",
  "headers": {
    "Authorization": "Bearer <access_token>"
  }
}

OAuth implementation

1. Create your OAuth callback endpoint.

   Set up an endpoint on your server to handle OAuth callbacks and securely process authorization codes. When Ada’s platform redirects users to this endpoint, extract the authorization code from the request and exchange it for access and refresh tokens by making a request to Ada’s OAuth token endpoint. Once the tokens are received, store them securely to authenticate future API requests. Finally, complete the installation process by performing any necessary post-authorization setup.

   Example

   Python

   1
   @app.route('/oauth/callback', methods=['GET'])
   2
   def oauth_callback():
   3
       # 1. Get authorization code from query params
   4
       code = request.args.get('code')
   5
   6
       # 2. Exchange code for tokens
   7
       token_url = f"https://{bot_handle}.ada.support/api/platform_integrations/oauth/token"
   8
       headers = {"Content-Type": "application/x-www-form-urlencoded"}
   9
       payload = {
   10
           "client_id": INTEGRATION_ID,
   11
           "client_secret": INTEGRATION_SECRET,
   12
           "code": code,
   13
           "grant_type": "authorization_code",
   14
       }
   15
       token_response = requests.post(token_url, headers=headers, data=payload)
   16
   17
       # 3. Store tokens securely
   18
       tokens = token_response.json()
   19
       store_tokens(tokens)
   20
   21
       # 4. Complete installation
   22
       # See details in the steps below
   23
       complete_installation(tokens['access_token'])

2. Implement token refresh logic.

   Access tokens expire periodically, requiring a refresh to maintain access. Your integration should store the refresh token securely and use it to request a new access token before expiration. This involves detecting token expiry, exchanging the refresh token via Ada’s OAuth endpoint, and securely storing the new stokens while avoiding reuse of the old refresh token.

   Example

   Python

   1
   def refresh_access_token(installation_id):
   2
   """
   3
   Exchange a refresh token for a new access token
   4
   """
   5
   integration_api_url = config.get("api_base_url", "").format(
   6
       client_handle=config.get("integration_client_handle")
   7
   )
   8
   refresh_token = installations[installation_id]["refresh_token"]
   9
   token_url = f"https://{bot_handle}.ada.support/api/platform_integrations/oauth/token"
   10
   headers = {"Content-Type": "application/x-www-form-urlencoded"}
   11
   payload = {
   12
       "client_id": INTEGRATION_ID,
   13
       "client_secret": INTEGRATION_SECRET,
   14
       "refresh_token": refresh_token,
   15
       "grant_type": "refresh_token",
   16
   }
   17
   token_response = requests.post(token_url, headers=headers, data=payload)
   18
   19
   token_json = token_response.json()
   20
   access_token = token_json.get("access_token")
   21
   expires_in = token_json.get("expires_in")
   22
   refresh_token = token_json.get("refresh_token")
   23
   24
   installations[installation_id]["access_token"] = access_token
   25
   installations[installation_id]["expires_at"] = datetime.utcnow() + timedelta(
   26
       seconds=expires_in
   27
   )
   28
   installations[installation_id]["refresh_token"] = refresh_token

   Our authorization server issues a new refresh token each time one is used, automatically revoking the previous token. If a refresh token is used more than once, the server will return an error response: {"error": "invalid_grant"}.

Step 4: Handle the installation flow

To properly manage an integration’s lifecycle, you need to implement mechanisms for both installation and uninstallation. Handling installation ensures that your integration can retrieve necessary configuration details and function correctly, while a proper uninstallation process allows for clean removal when the integration is no longer needed.

1. Retrieve installation details.

   Once an integration is installed, your system must retrieve essential installation details from the Ada Integrations API. These details include configuration parameters that your integration may need to function properly. Using the OAuth access token, you can fetch the installation ID associated with the integration instance.

   After retrieving the installation ID, mark the installation as complete by making an authenticated API request to Ada’s platform.

   Example

   Python

   1
   def complete_installation(access_token):
   2
   # Get installation ID
   3
   self_response = requests.get(
   4
       f"https://{bot_handle}.ada.support/api/platform_integrations/oauth/self",
   5
       headers={"Authorization": f"Bearer {access_token}"}
   6
   )
   7
   installation_id = self_response.json()['platform_integration_installation_id']
   8
   9
   # Mark installation as complete in Ada
   10
   requests.patch(
   11
       f"https://{bot_handle}.ada.support/api/v2/platform-integrations/{INTEGRATION_ID}/installations/{installation_id}",
   12
       headers={"Authorization": f"Bearer {access_token}"},
   13
       json={"status": "complete"}
   14
   )

2. Implement an uninstallation endpoint.

   When a user uninstalls the integration, the platform sends a DELETE request to your system. Your endpoint must validate the request using Ada’s HMAC-based signature to prevent unauthorized removals. Upon verification, extract the installation ID, remove stored credentials and related data, and return a 200 OK response to confirm successful uninstallation. Properly handling this step ensures a clean removal process, preventing orphaned data and maintaining security.

   Example

   Python

   1
   @app.route("/uninstall", methods=["DELETE"])
   2
   def uninstall():
   3
   """
   4
   This is the endpoint that the Ada App will call when the user uninstalls the integration.
   5
   """
   6
   uninstall_url = config.get("uninstall_url")
   7
   installation_id = request.args.get("installation_id")
   8
   signature = request.headers.get("x-ada-signature-V2")
   9
   timestamp = request.headers.get("x-ada-timestamp-V2")
   10
   request_body = request.get_data().decode("utf-8")
   11
   request_method = request.method.lower()
   12
   13
   verification = HMAC(
   14
       key=installations[installation_id]["client_secret"].encode(),
   15
       msg=f"{request_method}\n{uninstall_url}\n{request_body}\n{timestamp}".encode(),
   16
       digestmod=hashlib.sha256,
   17
   ).digest()
   18
   19
   encoded_verification = base64.b64encode(verification).decode()
   20
   21
   if not signature == encoded_verification:
   22
       return "Invalid signature", 401
   23
   24
   del installations[installation_id]
   25
   26
   print(f"Uninstalling installation {installation_id}")
   27
   28
   return "OK", 200

Step 5: Test your integration

Before deploying your integration, thoroughly test the installation, configuration, and uninstallation processes to ensure everything works as expected.

1. Access the integration settings.

   Open your development AI Agent dashboard and navigate to https://{bot_handle}.ada.support/platform/integrations/{integration_id}. This page allows you to manage and test your integration’s setup.

2. Fill out the configuration form.

   Enter the required details in your integration’s configuration form. Ensure that all necessary fields are completed and validate that the provided information is correctly saved.

3. Complete the OAuth flow.

   Authenticate your integration and verify that it successfully completes the OAuth process. Confirm that the authorization code is exchanged for access and refresh tokens and that these tokens are stored securely.

4. Verify installation status.

   Check that the integration is correctly installed and functioning as expected. Ensure that it retrieves necessary installation details and can interact with Ada’s APIs as intended.

5. Test the uninstallation flow.

   If needed, remove the integration and confirm that the uninstallation process works smoothly. Verify that stored credentials are deleted, API access is revoked, and no orphaned data remains.

Step 6: Ada approves and publishes your integration

Once you’ve thoroughly tested your integration and you’re ready to publish, submit your integration to developer-partnerships@ada.support.

Be sure to include the following:

• Your development AI Agent handle
• Integration ID
• Demo video illustrating the in-app experience of installation, OAuth, configuration, and how the integration interacts with Ada’s app
• An icon image representing your integration
